Biograph Vision QuadraBigger perspective. Better answers.

The power of a proven platform. The perspective of a large axial PETfield of view. Biograph Vision Quadra takes the potential of PET/CTeven further—capturing more in a single position—unlocking deeperclinical and research insights.

Introducing X‑Class performance: Biograph Vision Quadra PET/CTwith industry leading 183-ps ultra‑fast time-of-flight—expand what’spossible.⁷

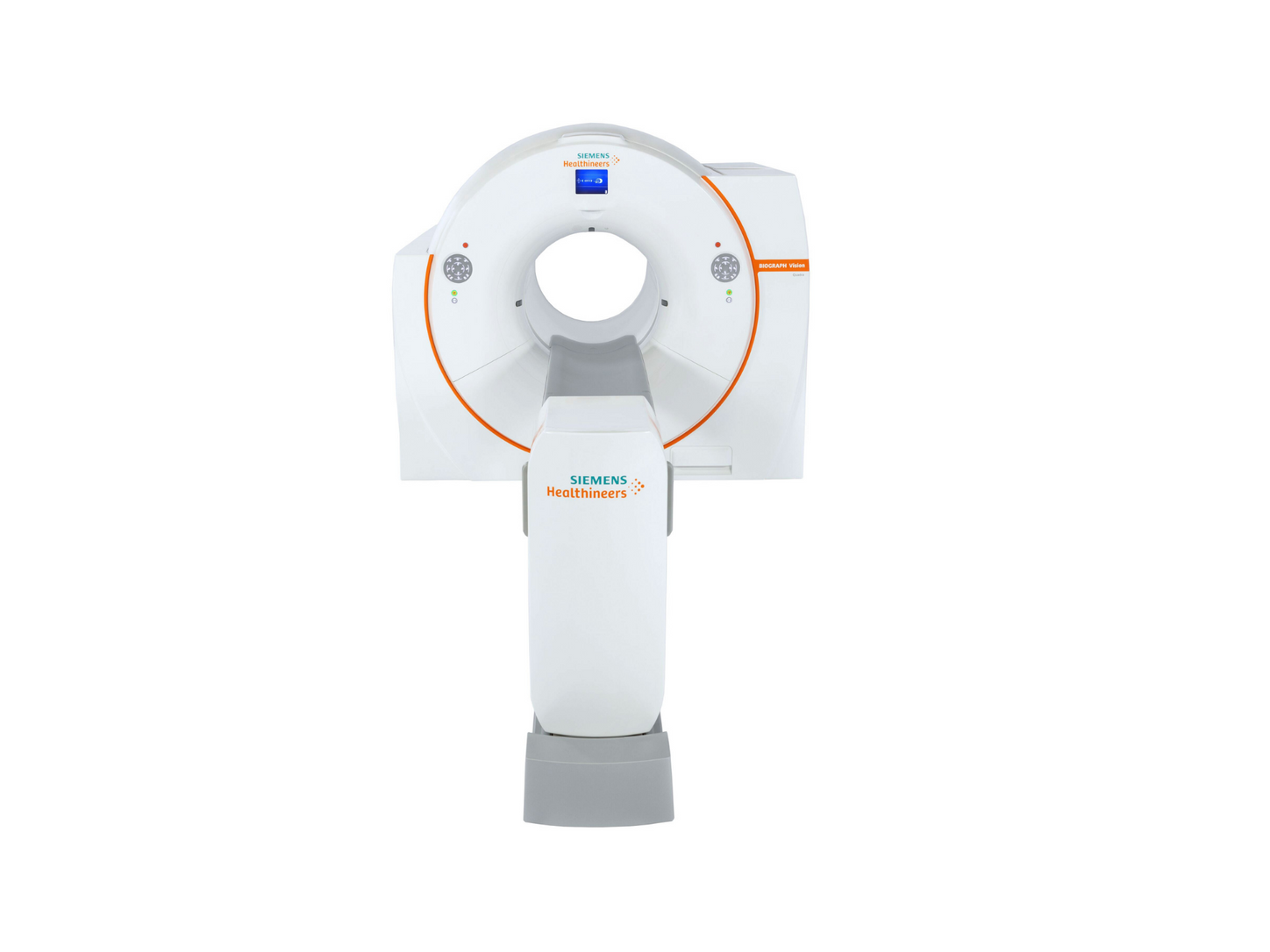

Biograph Vision Quadra

Benefits

Learn about Biograph Vision Quadra's features and benefits.

Bringing X-Class performance to Biograph Vision Quadra PET/CT with industry-leading 183-ps ultra-fast time of flight (TOF)7. Faster time of flight (TOF) reducesnoise, increasing detectability of small lesions and amplifies scanner sensitivity.

Biograph Vision Quadra engineered

With 106-cm axial PET field of view, Biograph Vision Quadra offers a whole-body (vertex to thighs) perspective so you can scan more in one position to dynamically follow tracer kinetics throughout the body. See with outstanding clarity with the ultra-fast time of flight (TOF) performance and PET effective sensitivity.²Biograph Vision Quadra exponentially expands your realm of investigation from tumor perfusion over time, diverse physiological processes, pediatric imaging, and more.

Learn more about true TOF technology

Biograph Vision Quadra outcomes

The accuracy, performance, and reproducibility of Biograph Vision™ sets a high standard in PET/CT imaging. With Biograph Vision Quadra, you achieve the same outstanding detail and definition that you have come to expect— increased detectability of smaller lesions, reduced scan time and effective dose, and faster evaluation of treatment impact.³ Ten times⁴higher effective sensitivity and ultra-fast TOF means that no matter your imaging application, Biograph Vision Quadra delivers proven clinical outcomes at a greater scale.

Biograph Vision Quadra built

Biograph Vision Quadra helps you lead the way in clinical and translational research, pioneering therapies, breakthrough procedures, and novel diagnostics. Powered by groundbreaking innovations, you can enhance your strategic collaborations and partnerships, further distinguish your institution, and strengthen your ability to attract world-class talent.

Biograph Vision Quadra is the first whole-body PET/CT scanner designed to fit into your existing environment—expanding research opportunities and enabling clinical flexibility. Unique, innovative architecture allows for easy serviceability, while driving efficient data management and enhanced workflows. With Biograph Vision Quadra, you have a research and clinical solution designed for your realities.

Learn about Biograph Vision Quadra's features and benefits.

Evidence

Clinical image review

Biograph Vision Quadra PET/CT clinical images of diffuse large B-cell lymphoma with varying acqusition times.

^{Data courtesy of Inselspital, Bern, Switzerland}

Whole-body scanning enabled

Diffuse large B-cell lymphoma case study scanned in one bed position with 106-cm axial PET field of view on Biograph Vision Quadra PET/CT.

Capture multiple organs simultaneously in a single field of view.

Oncology clinical image review

^{Data courtesy of Inselspital, Bern, Switzerland.}

First patient scan

8-minutes, 2 bed position / 4 min per bed
The first Biograph Vision Quadra patient scan. Patient with malignant melanoma, acquired at 90-min post-injection.

Click plus (+) to find out our features

3.2-mm LSO crystals

Optiso UDR detector

CT capability

Whole-body dynamic imaging

AIDAN Platform

Extended axial PET field of view

artificial intelligence application in nuclear medicine - AIDAN Intelligent imaging platform for PET CT scan machiness.

AIDAN Platform

Our intelligent imaging platform for Biograph™ PET/CT scanners that supports the demanding processing power of AI-based solutions.

Customer voices

“When you can see everything at once—the brain, the heart, the liver, the abdomen, the pelvis—that to me is a game changer.”

Professor Michael Fulham, MBBS

Professor Michael Fulham, MBBS

Royal Prince Alfred Hospital
Sydney, Australia

Videos

Technical Details

Technical Specifications

Bore diameter: 78 cm
Tunnel length: 235 cm
Table capacity: 227 kg (500 lb)

Technical Specifications

Generator power: 100 kW
Rotation times: 1.0, 0.5, 0.33, 0.30, 0.28 s
Tube voltages: 70, 80, 100, 120, 140 kV
Iterative reconstruction: SAFIRE
Metal artifact reduction: iMAR⁵
Slices: 128

Technical Specifications

Axial field of view: 106 cm
Crystal size: 3.2 x 3.2 x 20 mm
SiPM coverage of crystal array: 100%
Effective sensitivity: 2182 cps/kBq7,8
Time of flight performance: 183 ps7

Downloads

Biograph Vision Quadra Brochure Cover

|

Learn more about Biograph Vision Quadra

Experience X-Class performance

[a]

Compared to Biograph mCT. Measured value, based on phantom studies performed on a singe system. Biograph Vision Quadra has a 32x gain based on acceptance values. Data on file.

[b]

The tracer used in this case is a research pharmaceutical. It is neither recognized to be safe and effective by the FDA nor commercially available in the United States or in other countries worldwide. Its future availability cannot be guaranteed. Please contact your local Siemens Healthineers organization for further details.

[c]

Please see Indications and Important Safety Information for Fludeoxyglucose F18 (18F FDG) Injection and full Prescribing Information.

The statements by Siemens Healthineers customers described herein are based on results that were achieved in the customer’s unique setting. Since there is no “typical” hospital and many variables exist (e.g., hospital size, case mix, level of IT adoption), there can be no guarantee that other customers will achieve the same results.

1

Biograph Vision Quadra is not commercially available in all countries. Future availability cannot be guaranteed.

2

Measured value, based on phantom studies performed on a single system. Biograph Vision Quadra has ≤249ps time of flight performance based on acceptance values. Data on file.

3

Compared to Biograph mCT.

4

Based on competitive literature available at time of publication. Data on file.

5

Optional.

6

Measured value, based on phantom studies performed on a single system. Biograph Vision Quadra has a 803 cps/kBq effective sensitivity based on acceptance values. Data on file.

7

Measured value, based on phantom studies performed on a single system. Biograph Vision Quadra has ≤249 ps based on acceptance values. Data on file.
