The power of a proven platform. The perspective of a large axial PET field of view. Biograph Vision Quadra™ takes the potential of PET/CT even further. Dynamically see vertex to thighs in a single position and deepen the dimension of your investigations. Whether you're exploring new research questions or identifying the best clinical approach, with Biograph Vision Quadra, the answers are yours to find.

Watch the product launch event.
The best of both worlds

The best of both worlds

Scientists and physicians from Siemens Healthineers describe the motivations and innovations behind the development of a PET/CT scanner that combines the best of both worlds: an extended axial field of view (FoV) with industry-leading detector technology.
Read more
Learn about Biograph Vision Quadra’s features and benefits.

Eigenschaften & Vorteile

Engineered for new research dimensions

With 106 cm axial PET field of view, Biograph Vision Quadra offers a whole-body (vertex to thighs) perspective so you can scan more in one position to dynamically follow tracer kinetics throughout the body. And with best-in-class time-of-flight performance and PET effective sensitivity,1 you can see with outstanding clarity. From tumor perfusion over time, to diverse physiological processes, to pediatric imaging and more, Biograph Vision Quadra exponentially expands your realm of investigation.


Developed to reshape clinical outcomes

The accuracy, performance, and reproducibility of Biograph Vision are the gold standard in PET/CT imaging. With Biograph Vision Quadra, you achieve the same outstanding detail and definition that you have come to expect—increased detectability of smaller lesions, reduced scan time and effective dose, and faster evaluation of treatment impact.2 And now with higher effective sensitivity gained from a 106 cm axial PET field of view and the best time of flight,1 no matter your imaging application, Biograph Vision Quadra delivers proven clinical outcomes at a greater scale.


Designed for your realities

When envisioning the first whole-body PET/CT scanner, a key consideration was designing a system that fits into your existing environment. With a 106 cm axial PET field of view, you can perform a whole-body scan in one position on a machine built for the same space as a traditional PET/CT scanner. Our innovative architecture is designed for easy serviceability, efficient data management, and enhanced workflows. With Biograph Vision Quadra, you have research and clinical solution designed for your realities.


Built to advance your vision

Be at the forefront of PET/CT with Biograph Vision Quadra. Leverage the power of a proven platform along with the perspective of 106 cm axial PET field of view to lead the way in clinical and translational research—pioneering therapies, developing breakthrough procedures, and facilitating novel diagnostics. Biograph Vision Quadra enables streamlined information sharing to enhance your strategic collaborations and partnerships. Count on us for access to our renowned team of research and development experts. Distinguish your institution and strengthen your ability to attract world‐class talent, whose ideas will become the advancements that define the next generation of healthcare.

Bernard Bendriem, PhD
"What’s going to be exciting, is what the customers are going to do with it, what kind of knowledge is going to be acquired." Bernard Bendriem, PhD
Principal Research and Development Expert, Siemens Healthineers, Molecular Imaging

Klinische Anwendung

Clinical images of diffuse large B-cell lymphoma with varying acquisition times

Overview
10 minutes
4 minutes
1 minute
15 seconds

Whole-body scanning enabled

Diffuse large B-cell lymphoma case study scanned in one bed position with 106 cm axial PET field of view on Biograph Vision Quadra PET/CT.

Capture multiple organs simultaneously in a single field of view.

Data courtesy of Inselspital, Bern, Switzerland​
Case details: Diffuse large B-cell lymphoma

Case details: Diffuse large B-cell lymphoma

Patient information
  • ​90-minute uptake​
  • 160 cm (5’ 2”)​
  • 57 kg (126 lbs)​
  • 5.1 mCi (191 MBq)​

Scan acquisition
  • 440 x 440 matrix, PSF+TOF 4i5s​
  • Gaussian filter 2


Data courtesy of Inselspital, Bern, Switzerland​
Leveraging Optiso UDR technology <br /><br />

Leveraging Optiso UDR technology

10-minute, single-bed position

3.2 mm crystal elements provide high spatial resolution and high time-of-flight resolution, which dramatically increases effective sensitivity.

Data courtesy of Inselspital, Bern, Switzerland​
Expanded potential

Expanded potential

4-minute, single-bed position

With a 40x higher effective sensitivity.3


Data courtesy of Inselspital, Bern, Switzerland​
Enhanced workflow flexibility

Enhanced workflow flexibility

1-minute, single-bed position

With Biograph Vision Quadra, you have the flexibility to design a variety of protocols, with fast scan times and low doses.


Data courtesy of Inselspital, Bern, Switzerland​
Explore possibilities

Explore possibilities

15-second, single-bed position

For high-density imaging at fast scan times, evaluation of novel physiologic models, and the possibility to follow the kinetic behavior of individual tracer agents.


Data courtesy of Inselspital, Bern, Switzerland​

Technische Details

Transcend digital with the Optiso UDR detector

Optiso UDR’s proprietary 3.2 mm LSO crystals move silicon photomultiplier (SiPM) technology beyond digital to a new level of precision to help you detect small lesions, devise accurate treatment strategies, and achieve optimal performance in a wide range of count rates.

Technische Spezifikationen

Gantry
Bore diameter78 cm
Tunnel length235 cm
Table capacity227 kg (500 lb)
CT
Generator power100 kW
Rotation times1.0, 0.5, 0.33, 0.30, 0.28 s
Tube voltages70, 80, 100, 120, 140 kV
Iterative reconstructionSAFIRE
Metal artifact reductioniMAR*
Slices128
PET
Axial field of view106 cm
Crystal size3.2 x 3.2 x 20 mm
SiPM coverage of crystal array100%
Effective sensitivity1000 cps/kBq**

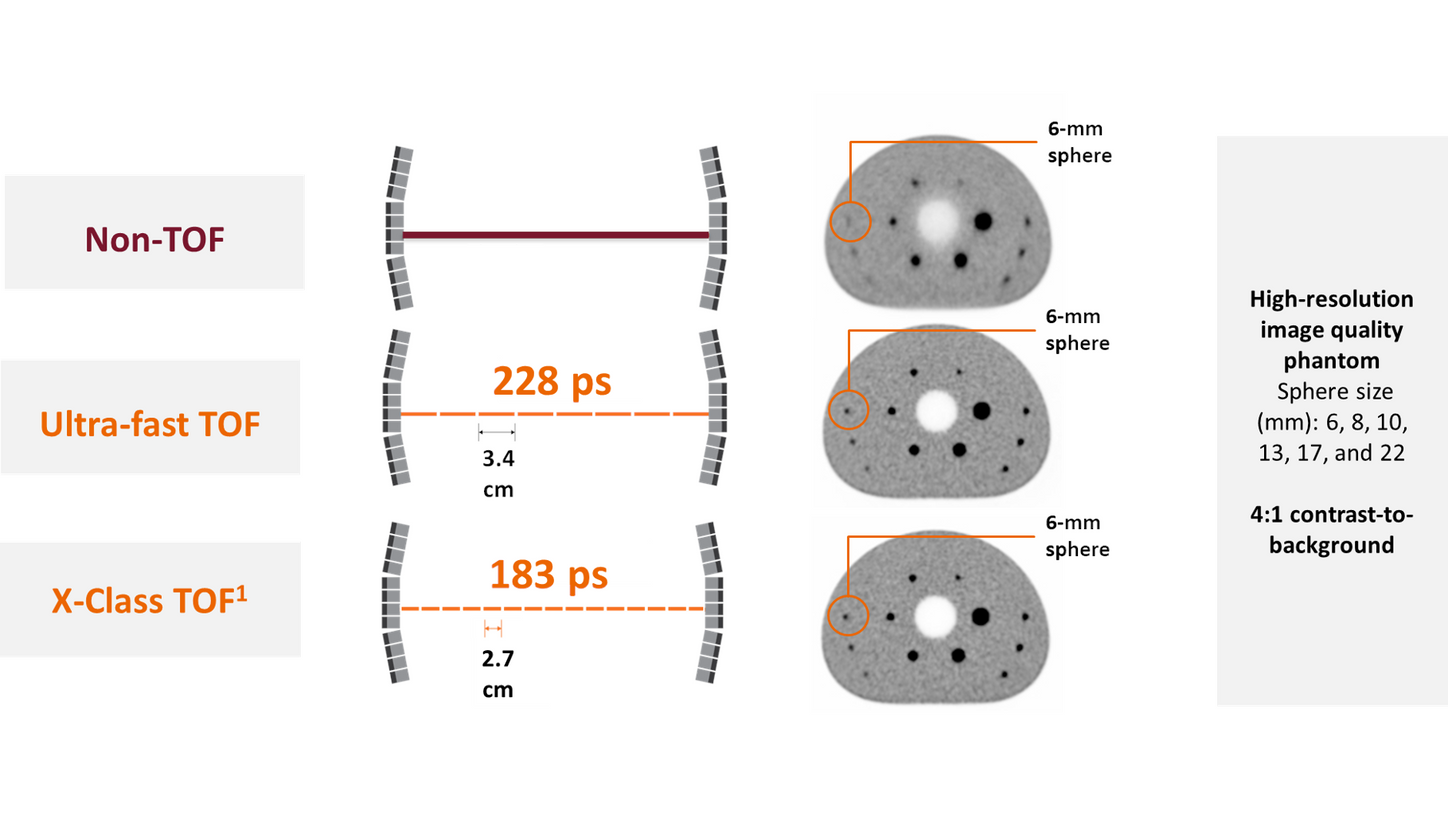

Time of flight performance≤228 ps***
Respiratory gatingYes



* Optional

** Measured value, based on phantom studies performed on a single system. Biograph Vision Quadra has a 803 cps/kBq effective sensitivity based on acceptance values. Data on file.

*** Measured value, based on phantom studies performed on a single system. Biograph Vision Quadra has ≤=249 ps based on acceptance values. Data on file.



Verwandte Produkte, Dienstleistungen und Ressourcen

1Measured value, based on phantom studies performed on a single system. Biograph Vision Quadra has ≤249ps time of flight performance based on acceptance values. Data on file.

2Compared to Biograph mCT

3Compared to Biograph mCT. Measured value, based on phantom studies performed on a single system. Biograph Vision Quadra has a 32x gain based on acceptance values. Data on file.
