OPTIQ AIClear insights. Powered by AI.

Learn more.

Make AI-powered imaging and clear insights your standard during interventions – with OPTIQ AI.

During minimally invasive procedures, it is critical to have a clear view of anatomies and devices. Yet complex imaging tasks or challenging patient conditions often impact image quality.
OPTIQ AI delivers constant image quality¹ defined by CNR in support of the ALARA principle, independent of patient or C-arm angulation. On top, an AI-powered algorithm reduces image noise in real time across different 2D imaging modes.
As a result, overall image quality is improved², and the contrast of clinically relevant details is increased³, leading to greater confidence in assessing device and vessel details⁴.

Clinical use

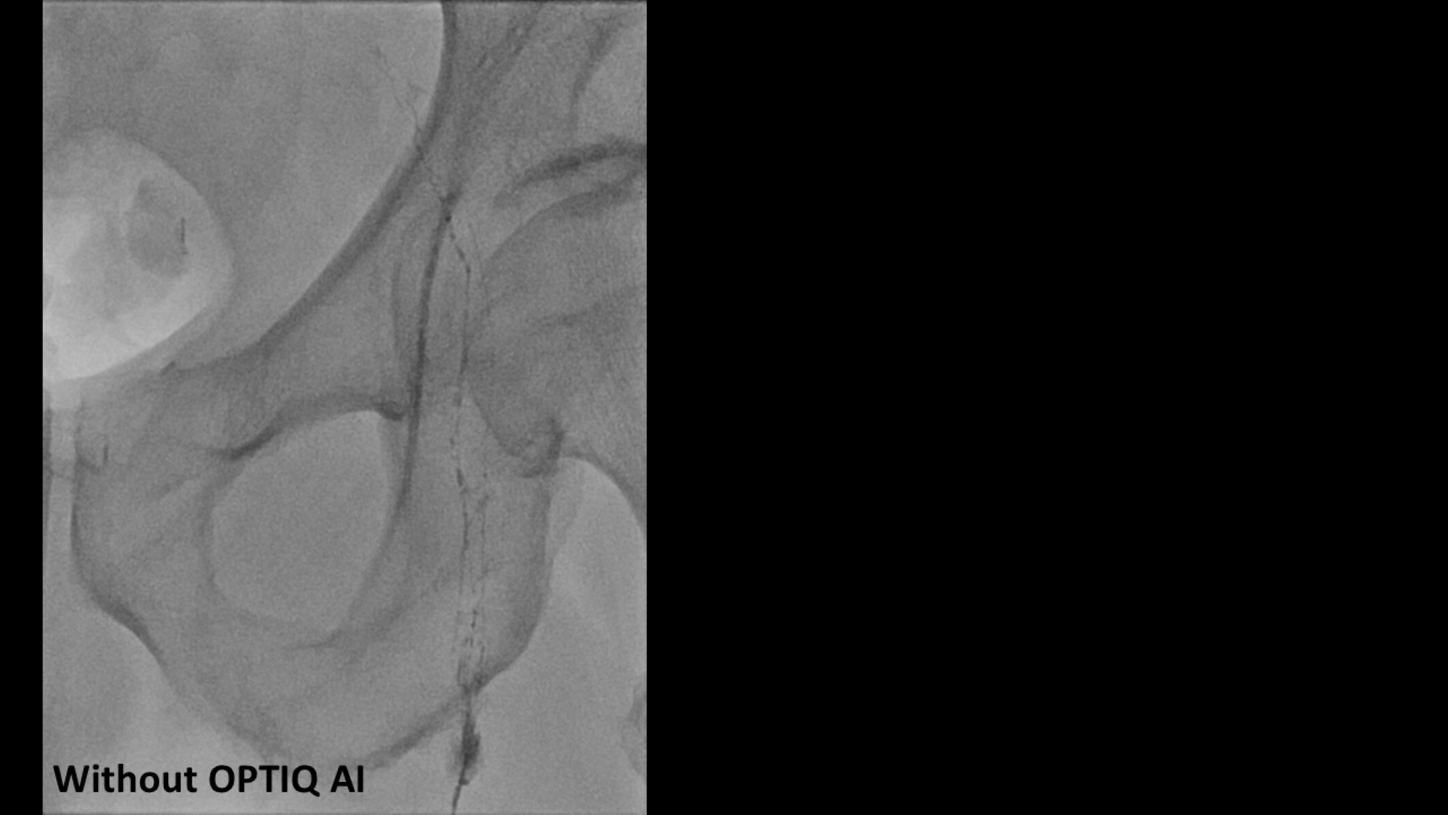

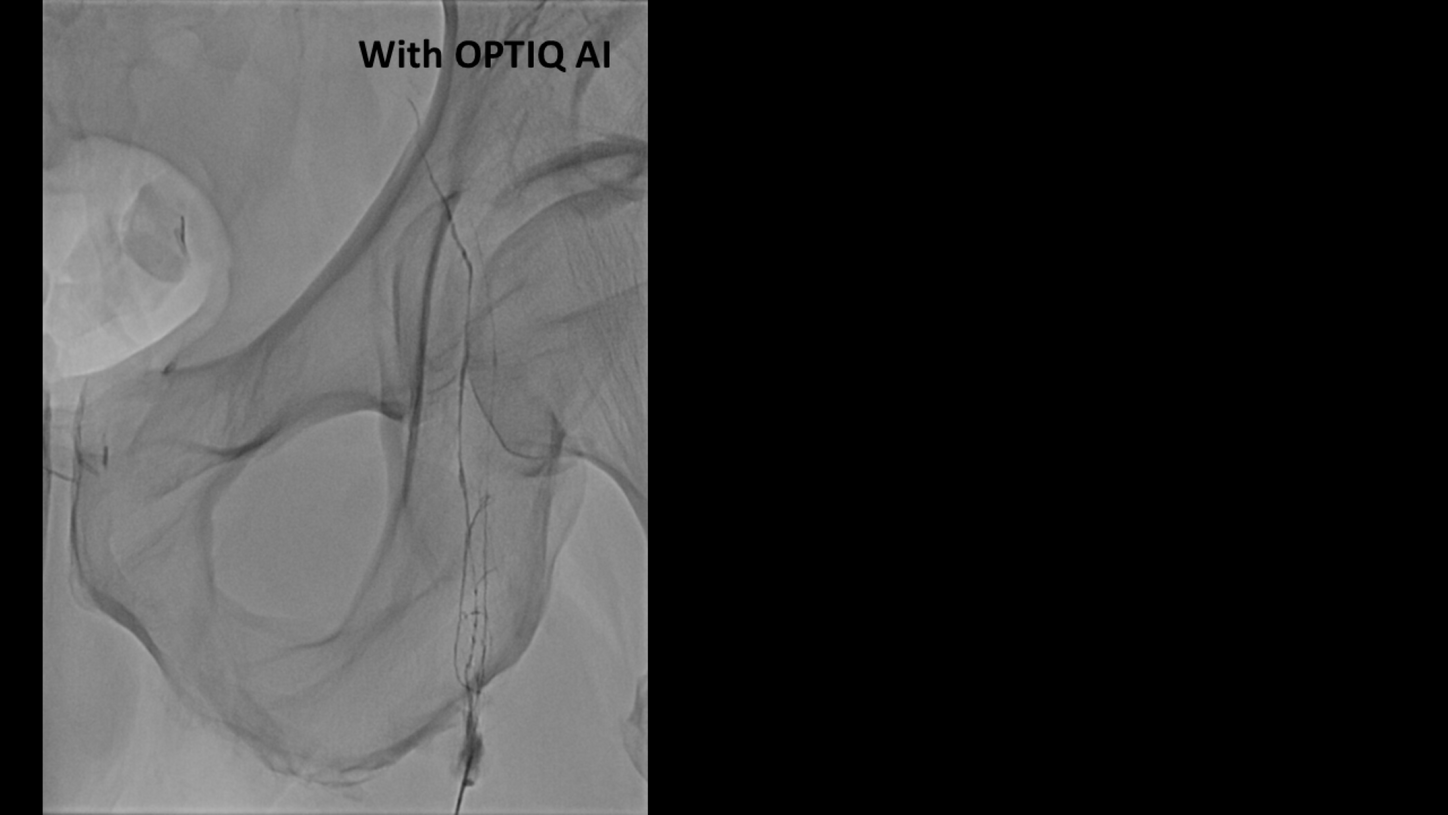

See for yourself: OPTIQ AI makes the difference

Courtesy of University Heart Center Freiburg/Bad Krozingen, Germany

Excellent device visibility at lowest reasonable achievable dose

Structure Scout enables optimization on specific materials, e.g., iron, tantalum, or platinum to save dose while maintaining excellent device visibility.⁸

Features

Discover the technologies of the OPTIQ AI imaging chain

: Prostate artery embolization
Courtesy of Florian Wolf, MD, Medical University Vienna, Austria

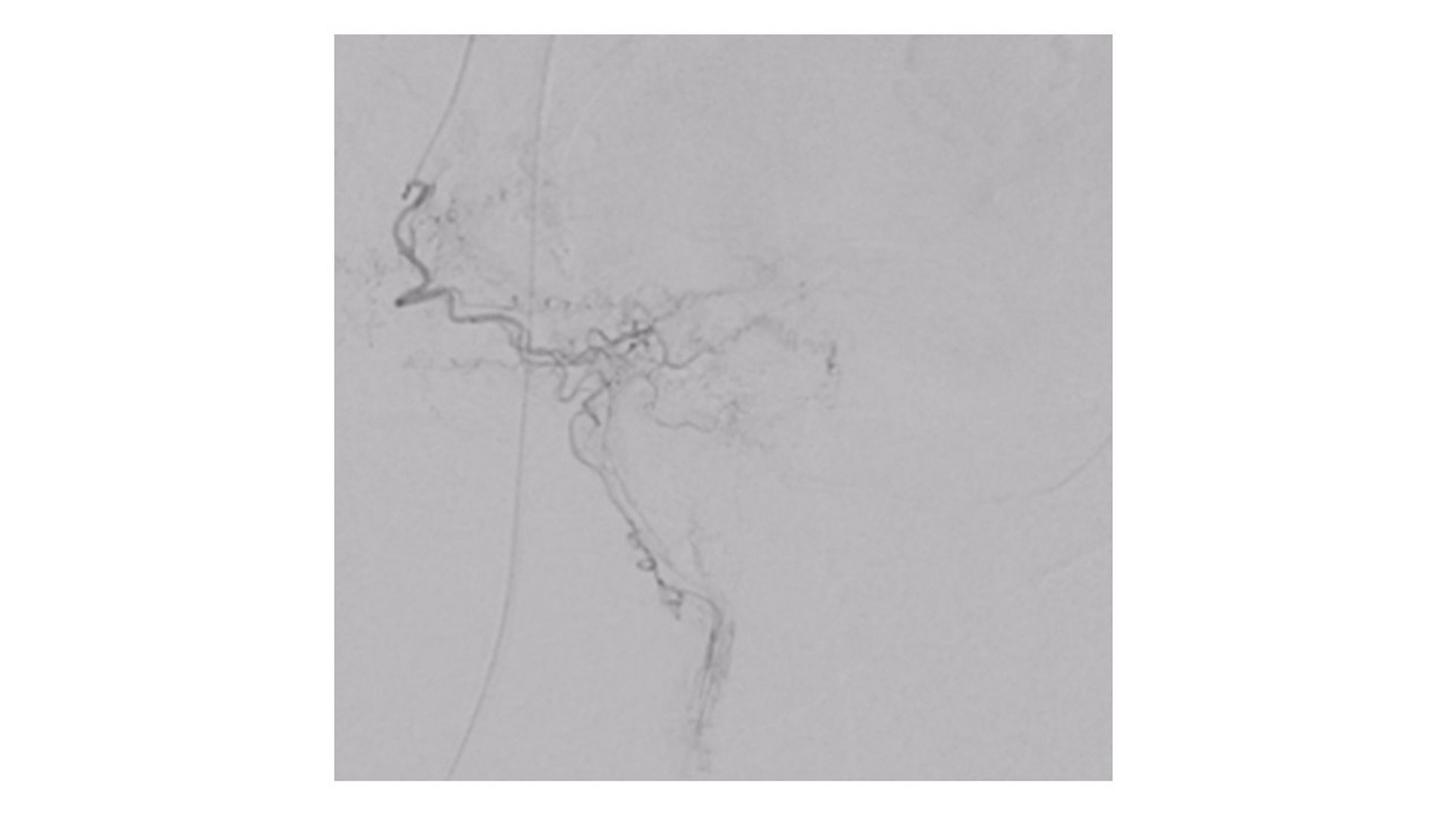

Constant image quality¹ committed to the ALARA principle
OPTIQ AI uses big data to automatically optimize imaging parameters. The 5+1 exposure control adjusts voltage, current, filtration, focal spot, pulse width, and detector dose in real time – even during system movement – ensuring clear images at the lowest reasonable dose.
: Percutaneous Coronary Intervention
Courtesy Prof. Samuel Tobias Sossalla, Kerckhoff-Klinik, Bad Nauheim, Germany

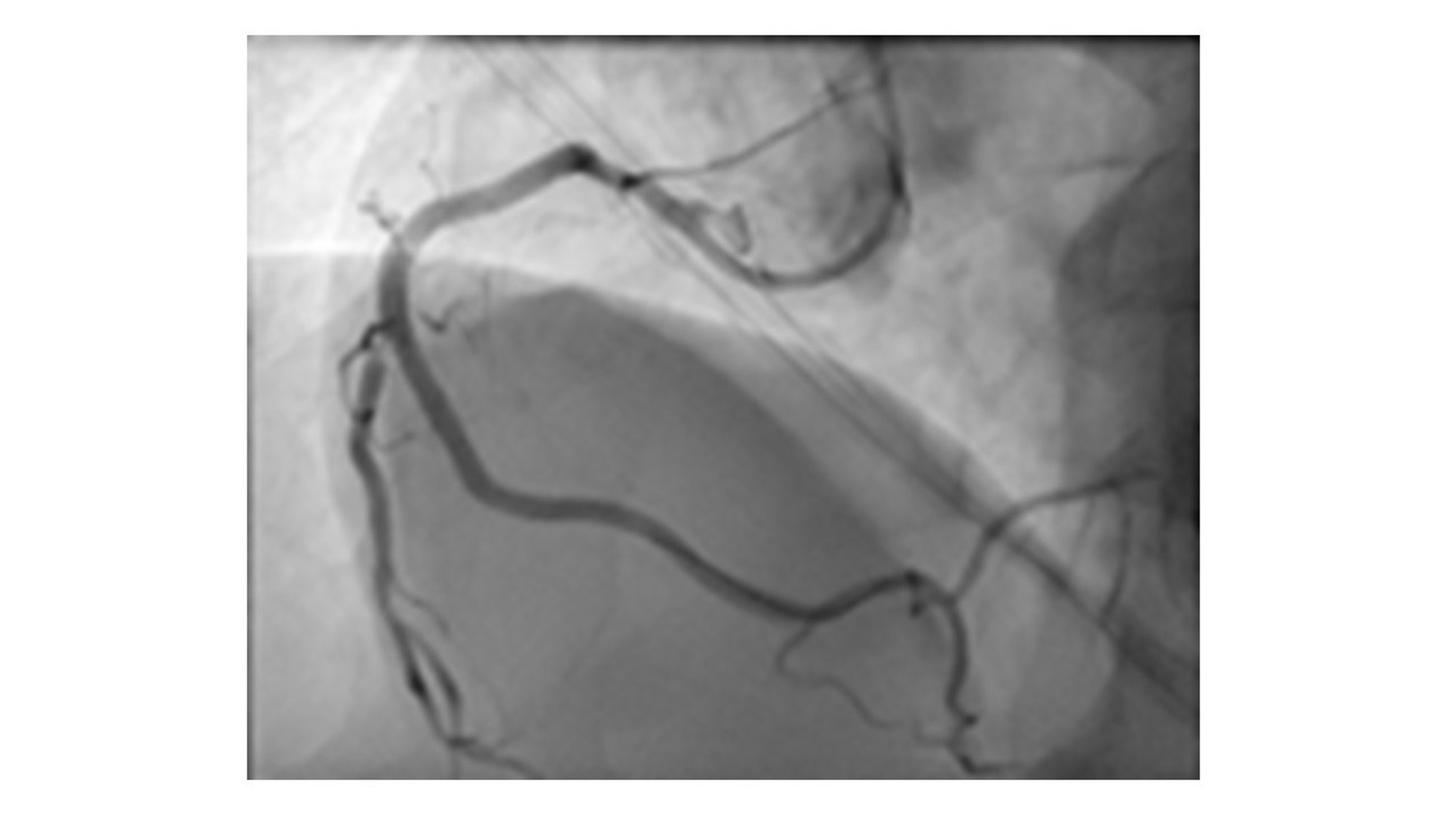

More confidence in assessing 2D images
OPTIQ AI features an AI-powered algorithm that automatically reduces image noise in real time across different 2D imaging modes and body regions – while better⁶ preserving structures such as devices⁷.
: Platinum coils
Courtesy of Hendrik Jansson, MD, Klinikum Ingolstadt, Germany

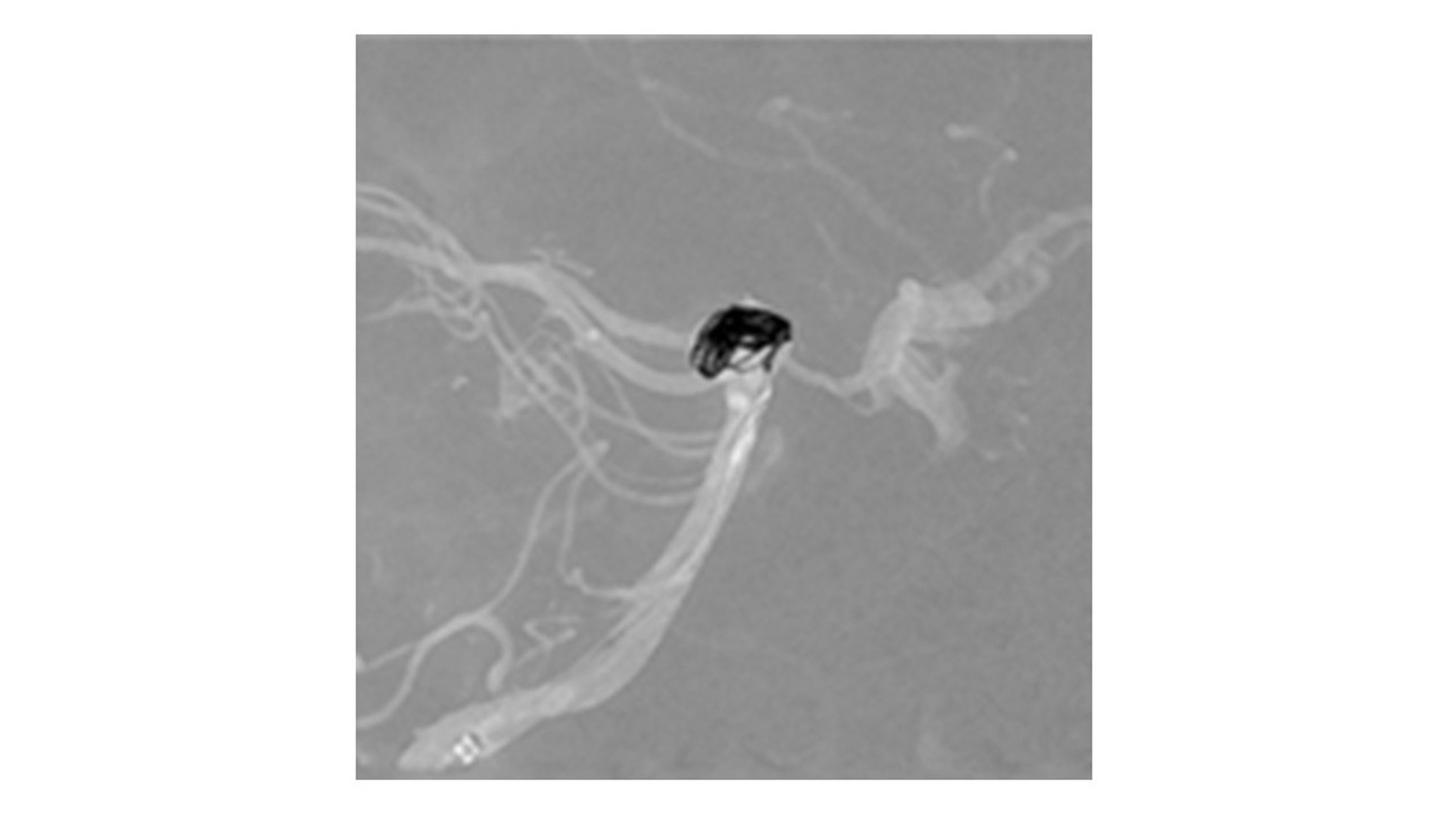

Material-specific imaging
Structure Scout enhances device visibility based on its material’s x-ray absorption, allowing to see what needs to be seen while keeping radiation dose as low as reasonably achievable.
: Selective internal radiotherapy
Courtesy of Prof. Bernhard Meyer, Hanover Medical School, Hanover, Germany

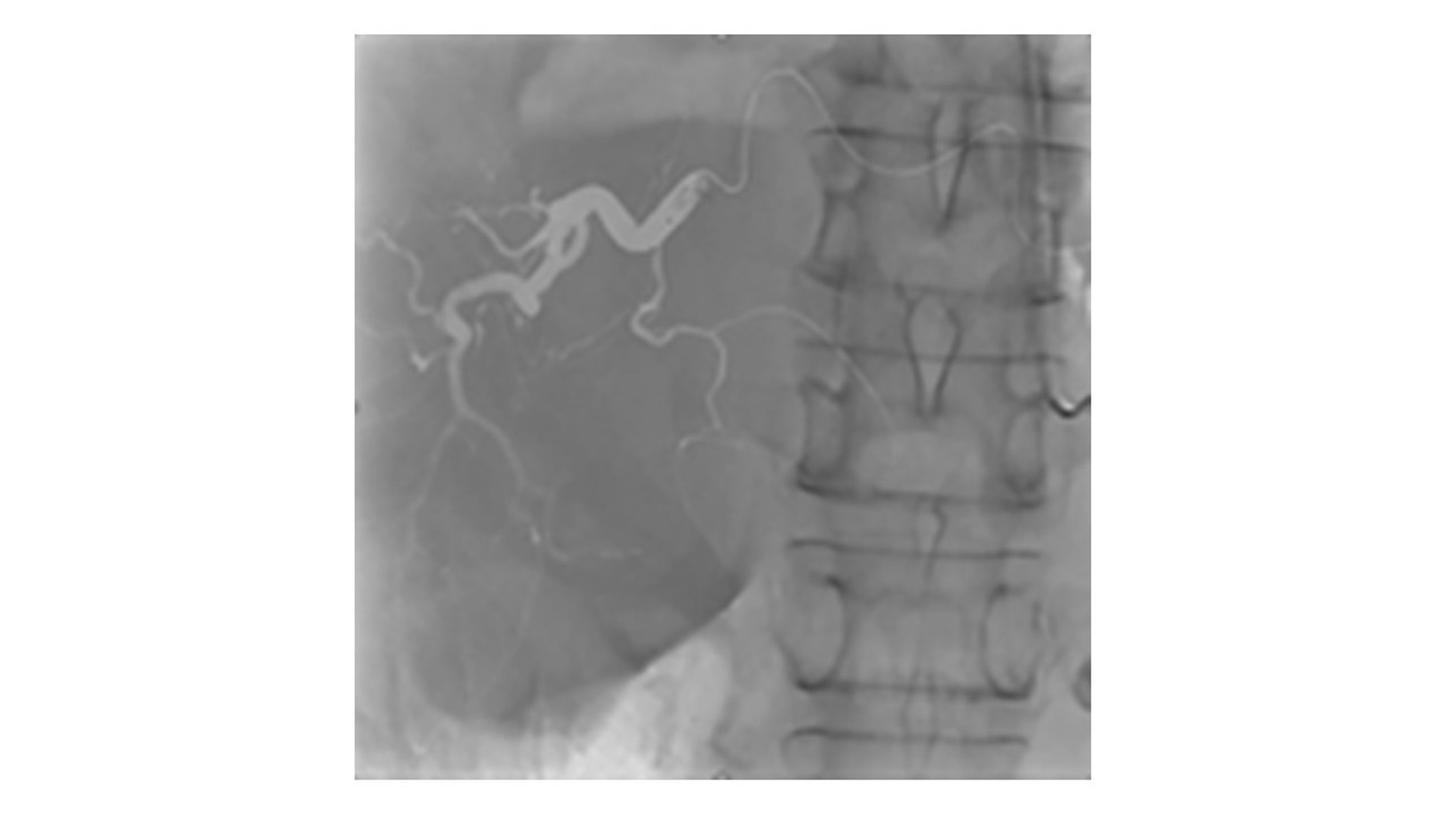

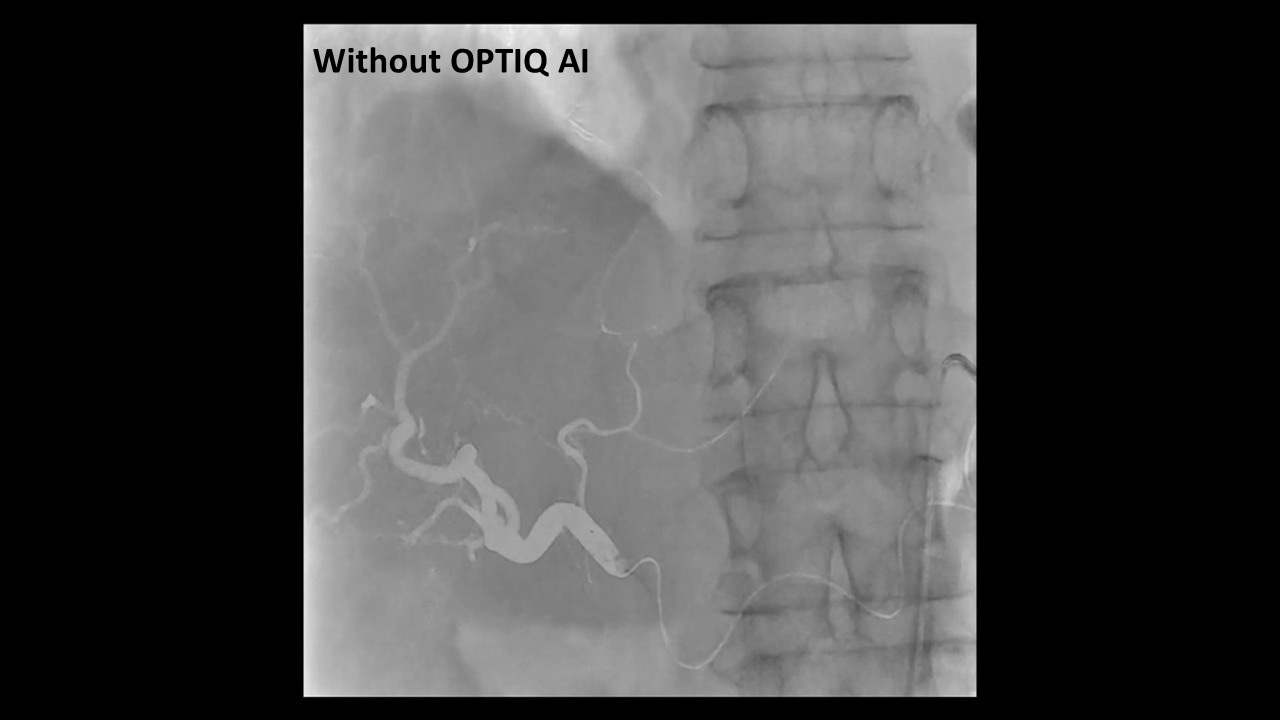

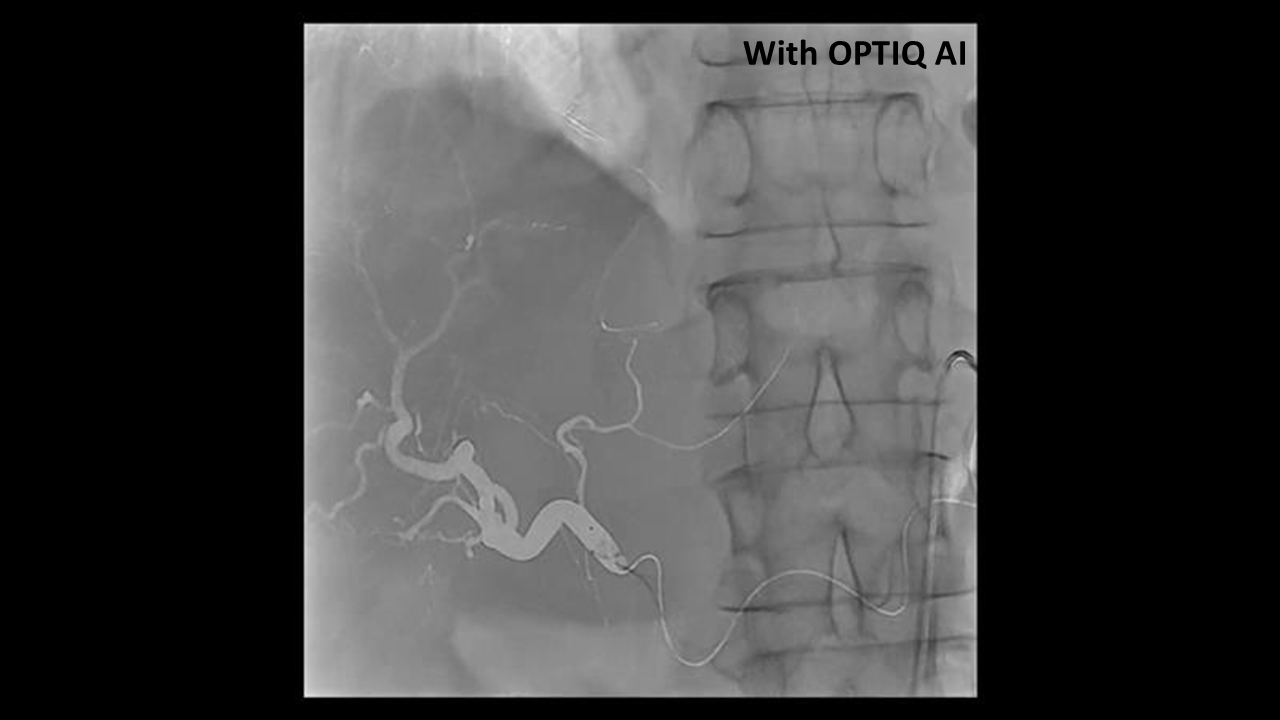

More vessel contrast and enhanced device visibility
Overlay Ref boosts vessel contrast in the overlaid DSA reference image while maintaining device visibility in live fluoroscopy, supporting precise navigation throughout the procedure.
: Roadmap
Courtesy of Johannes Weber, MD, Kantonsspital St. Gallen, Switzerland

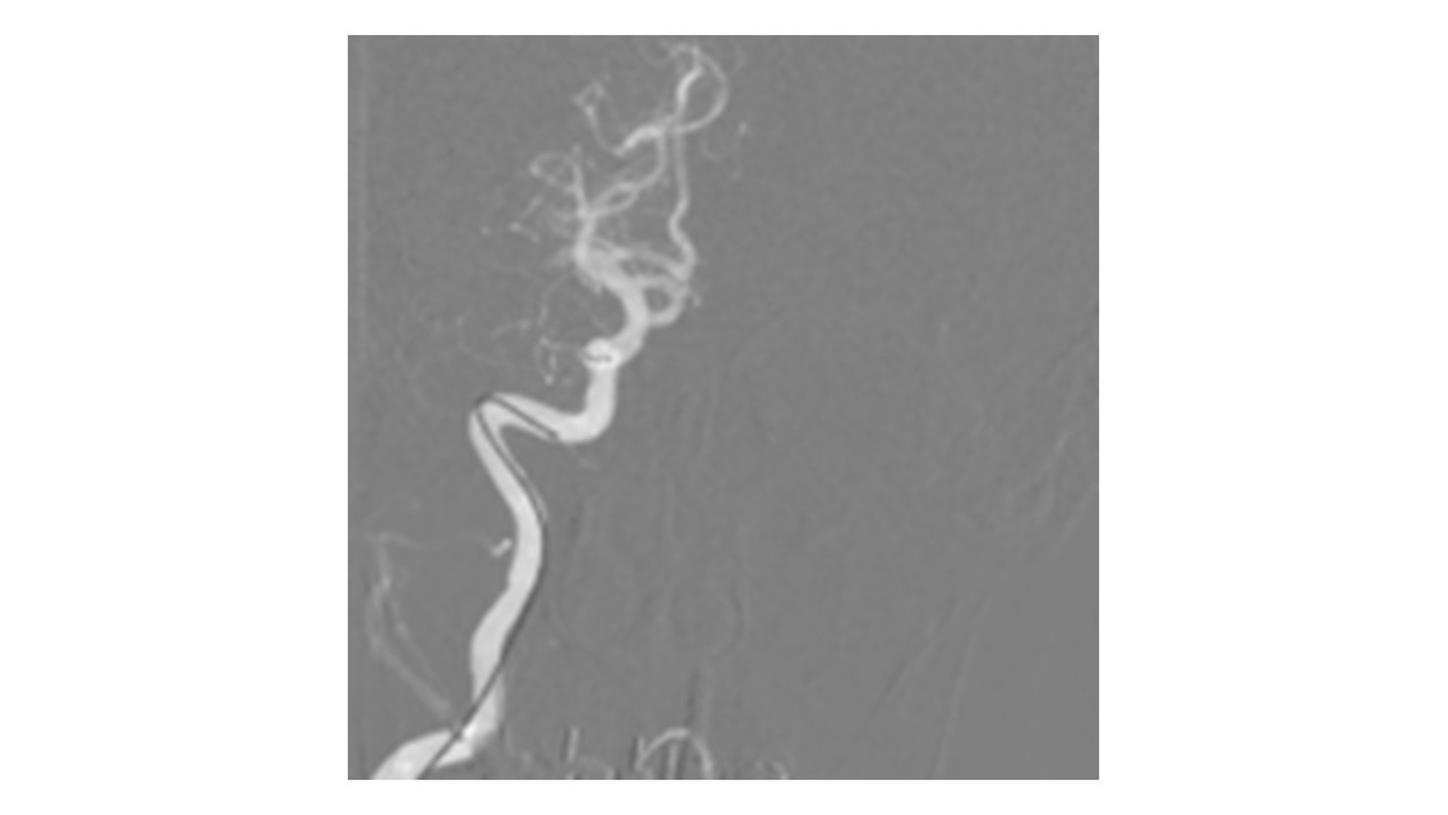

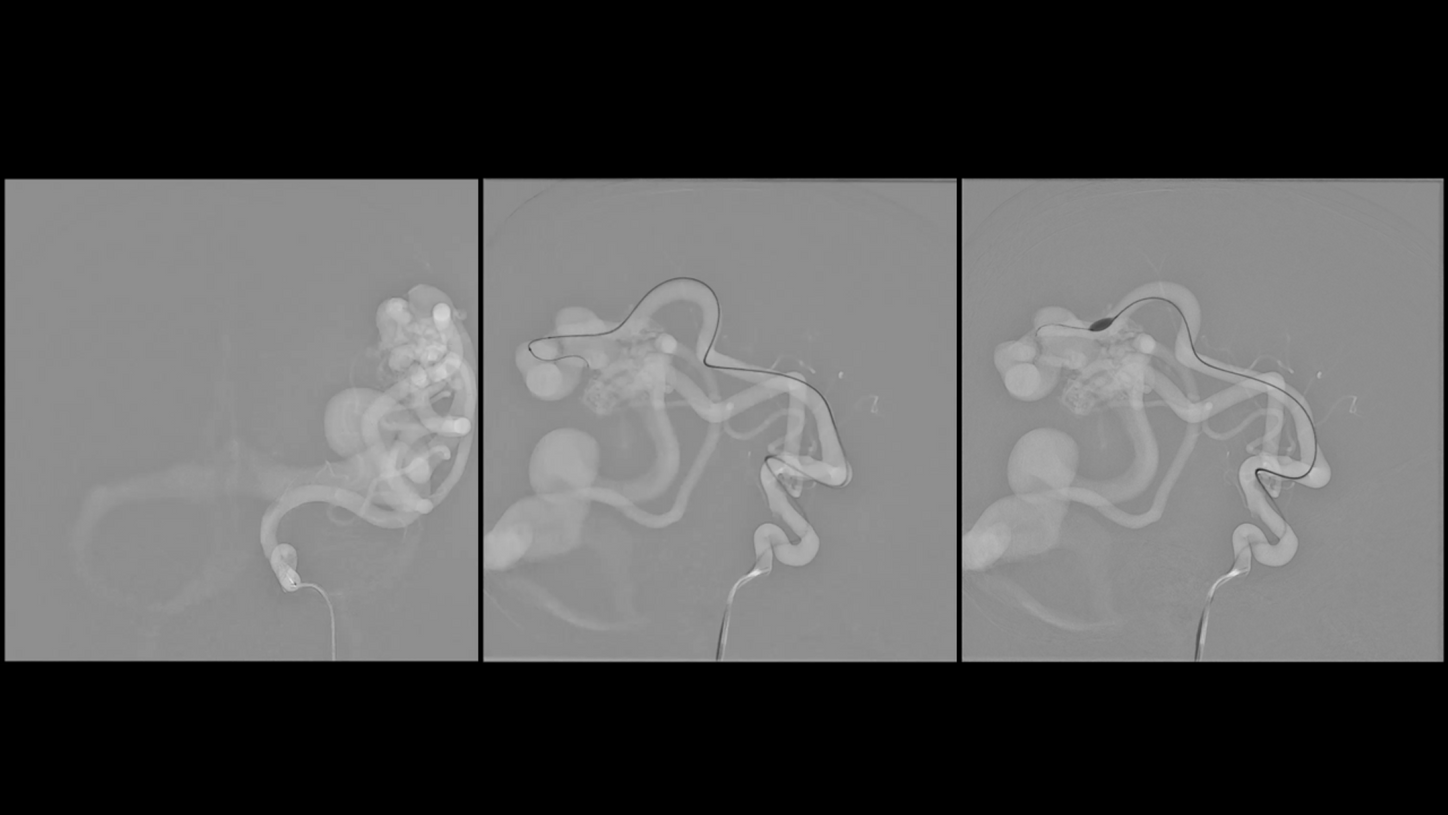

Reuse DSA scene
DSA Roadmap enables the use of any previously acquired DSA scene and automatically returns to the exact system position – with accuracy below 0.5 mm – potentially helping reduce dose and contrast while supporting precise device placement.

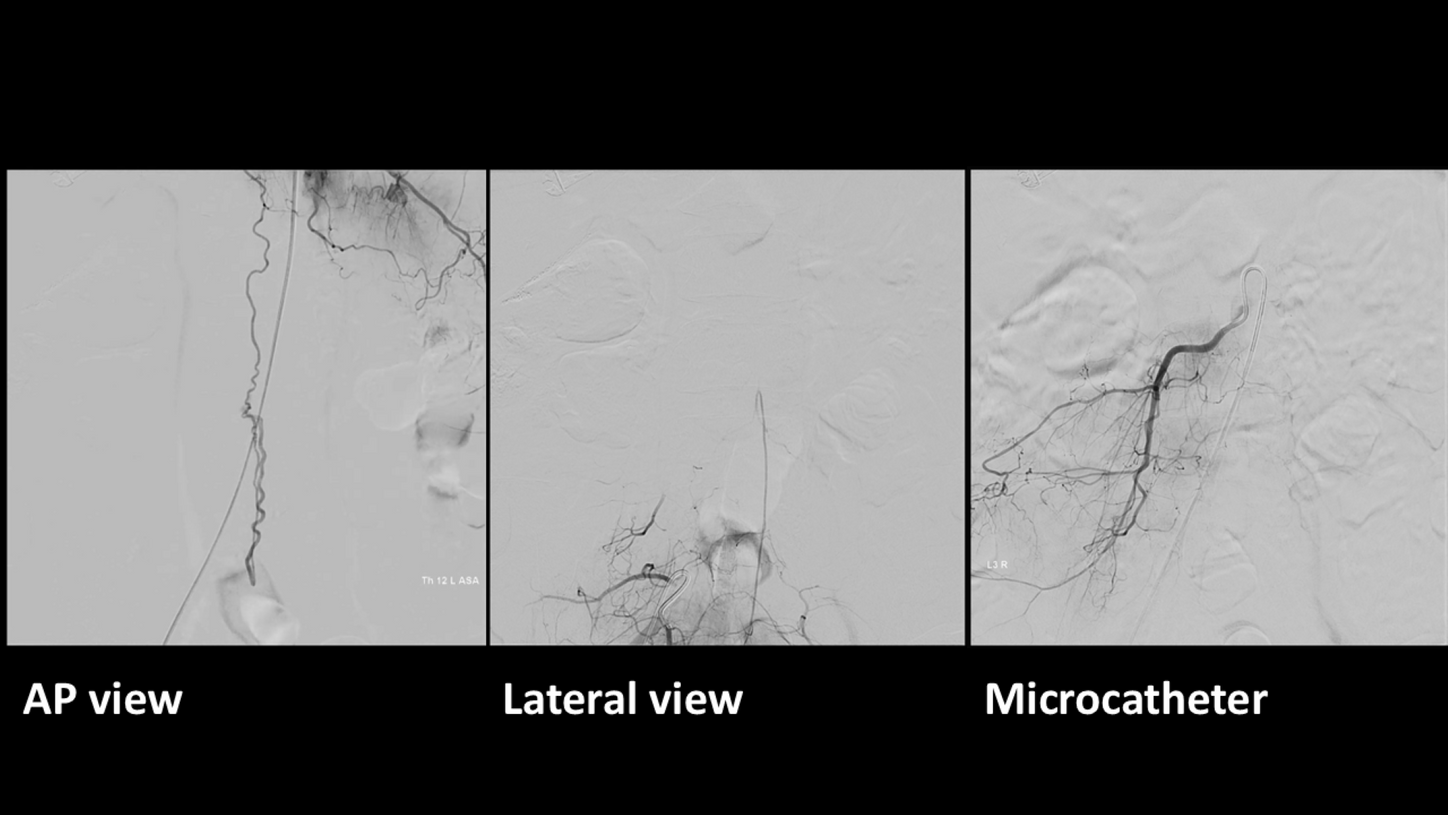

: DSA
Courtesy of Prof. Martin Skalej, MD, University Hospital Halle, Germany

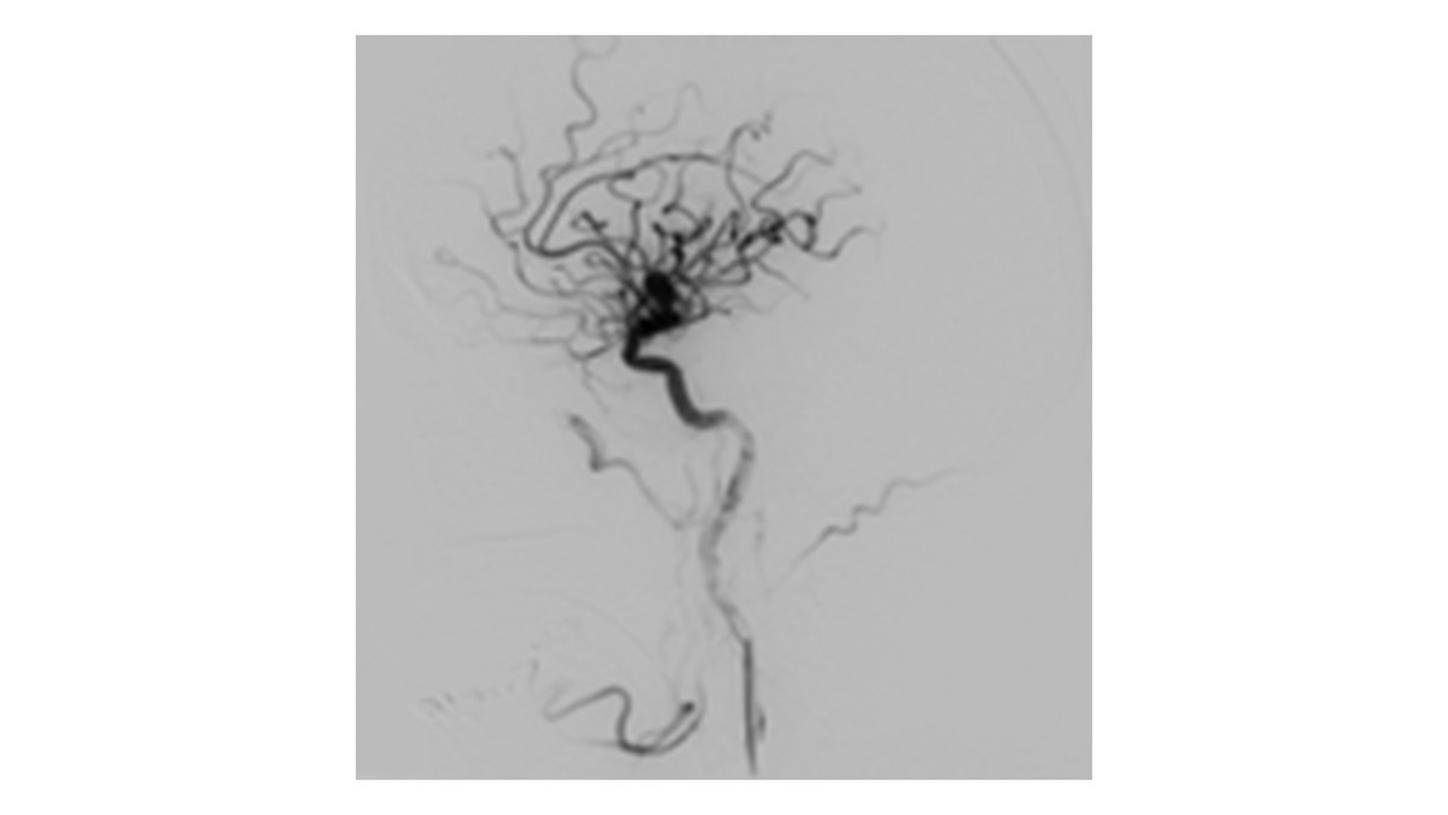

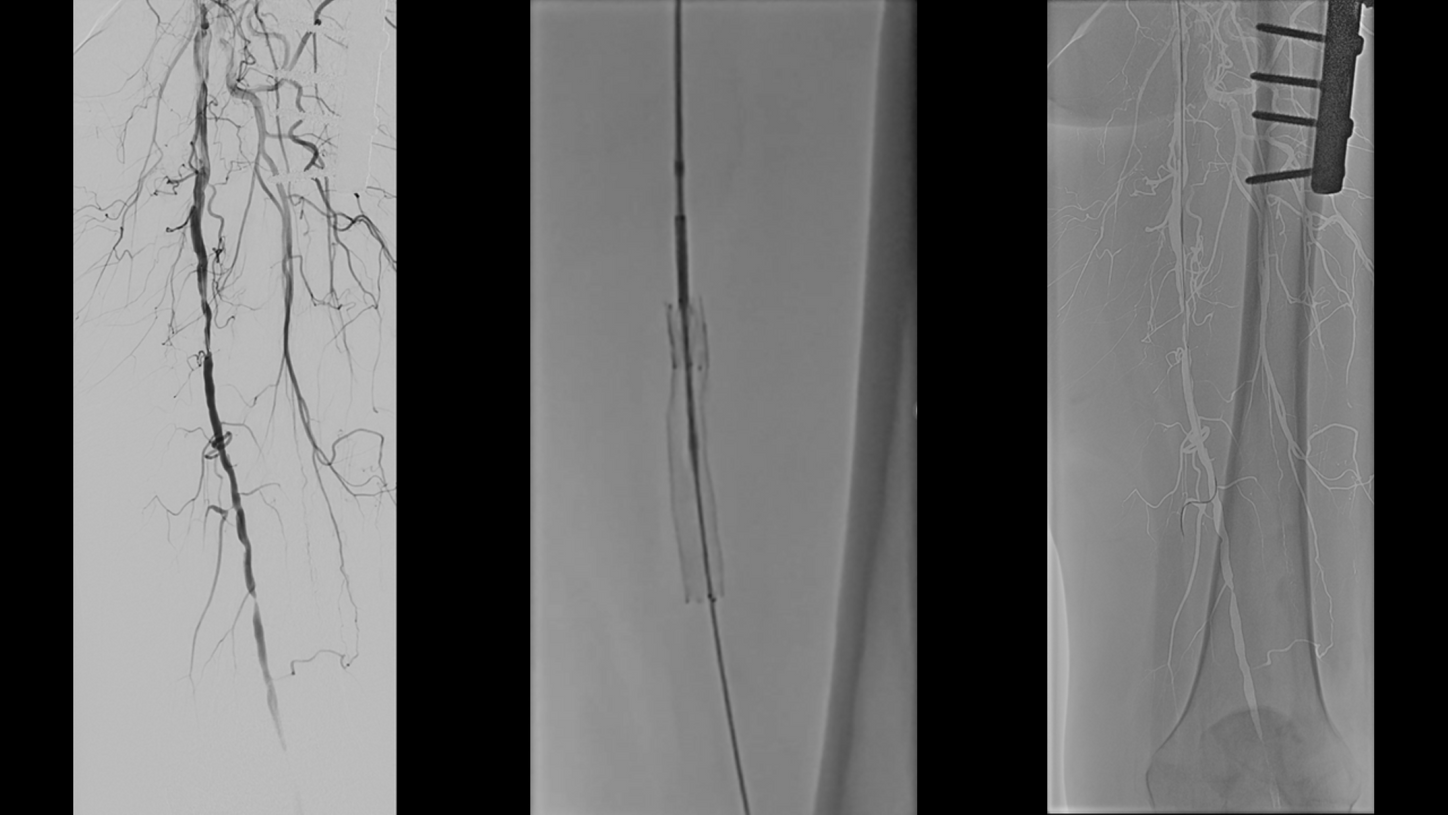

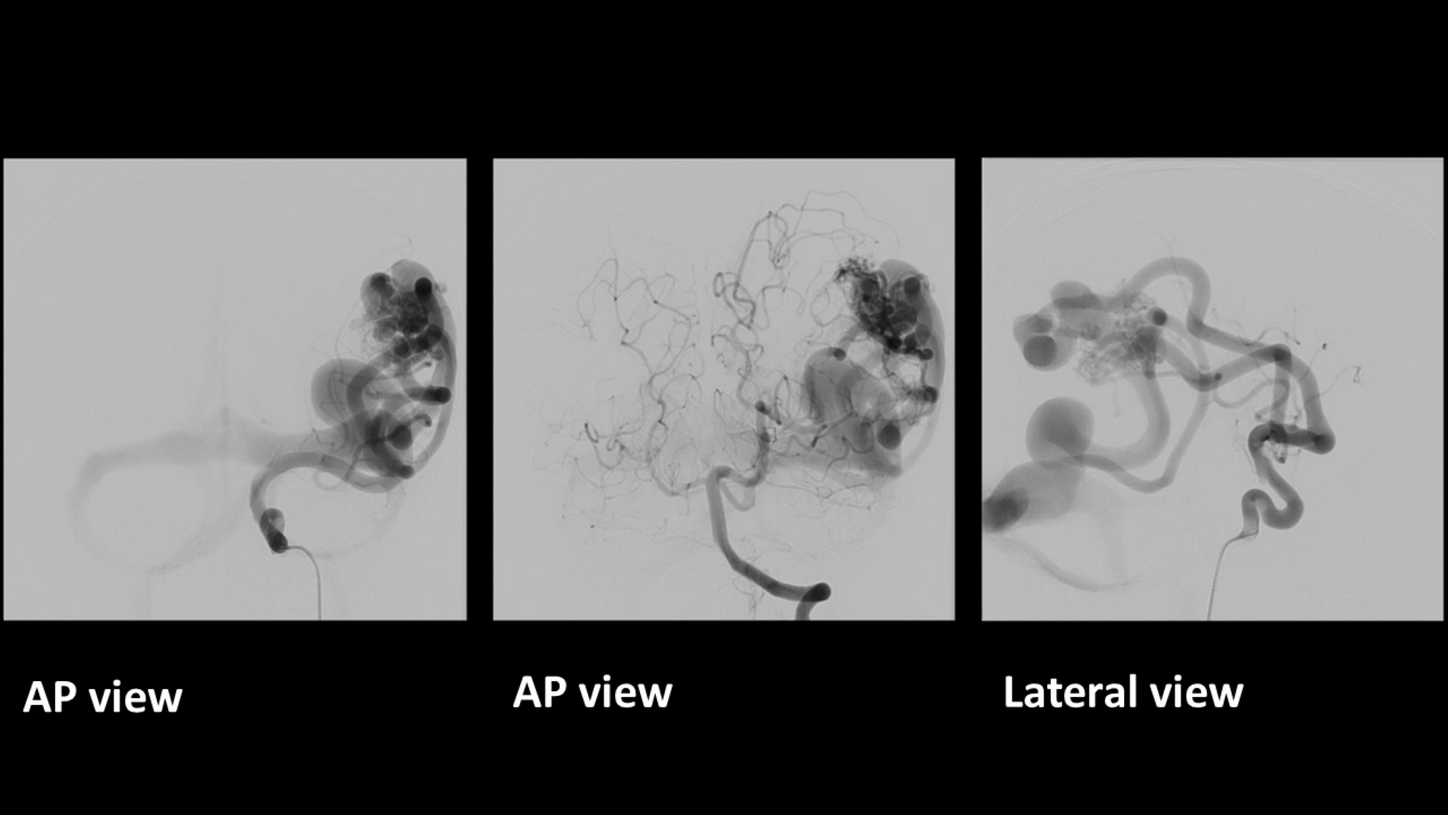

Clear visualization of small vessels
High-quality imaging is essential to visualize both treatable and delicate peripheral vessels. Our advanced DSA technology supports this with a three focal spots tube, 2K live imaging, up to five magnification formats, and real-time pixel shift in six dimensions.

Testimonials

Find out what the first users say about the OPTIQ AI imaging chain

“OPTIQ AI is, in my view, one of the most convincing AI applications in interventional radiology today. This level of image quality has quickly become our new normal - it’s now hard to imagine working without it.”

Patrick Kupczyk, MD

Patrick Kupczyk, MD

University Hospital Bonn, Germany

Portfolio

Explore the new ARTIS angiography portfolio, equipped with the OPTIQ AI imaging chain

ARTIS genio, Siemens Healthineer's new AI-based angiography systems that will bring intelligent AI-enhanced imaging and high productivity to multiple clinical segments.

ARTIS genio floor

Versatility. Powered by AI.

ARTIS genio brings intelligent AI-enhanced imaging and high productivity to multiple clinical segments.

ARTIS icono.explore, Siemens Healthineer's new AI-based angiography system that is equipped with a suite of new AI-powered software applications to boost your workfloww.

ARTIS icono.explore floor

Performance. Powered by AI.

Equipped with new AI-powered software to boost image quality, ARTIS icono.explore is an accessible high performer._.

ARTIS icono.vision, Siemens Healthineer's new AI-based angiography system that is designed to realize your vision of growth to enable you to offer a wide procedure mix in a single interventional suite.

ARTIS icono.vision⁹

Innovation. Powered by AI.

ARTIS icono.vision is designed to realize your vision of growth to enable you to offer a wide procedure mix in a single interventional suite.

ARTIS pheno.vision, Siemens Healthineer's new advanced robotic imaging system designed for a wide procedure-mix and will be powered by an AI-enhanced imaging chain in the future.

ARTIS pheno.vision¹⁰

Innovation. Powered by AI.

Advanced robotic imaging system designed for a wide procedure-mix and will be powered by an AI-enhanced imaging chain in the future.

Scientific evidence and clinical experience

Discover scientific publications and clinical experience reports on CNR-based acquisition and the Structure Scout package. These studies demonstrate how OPTIQ supports consistent image quality and dose-efficient imaging in daily clinical practice.

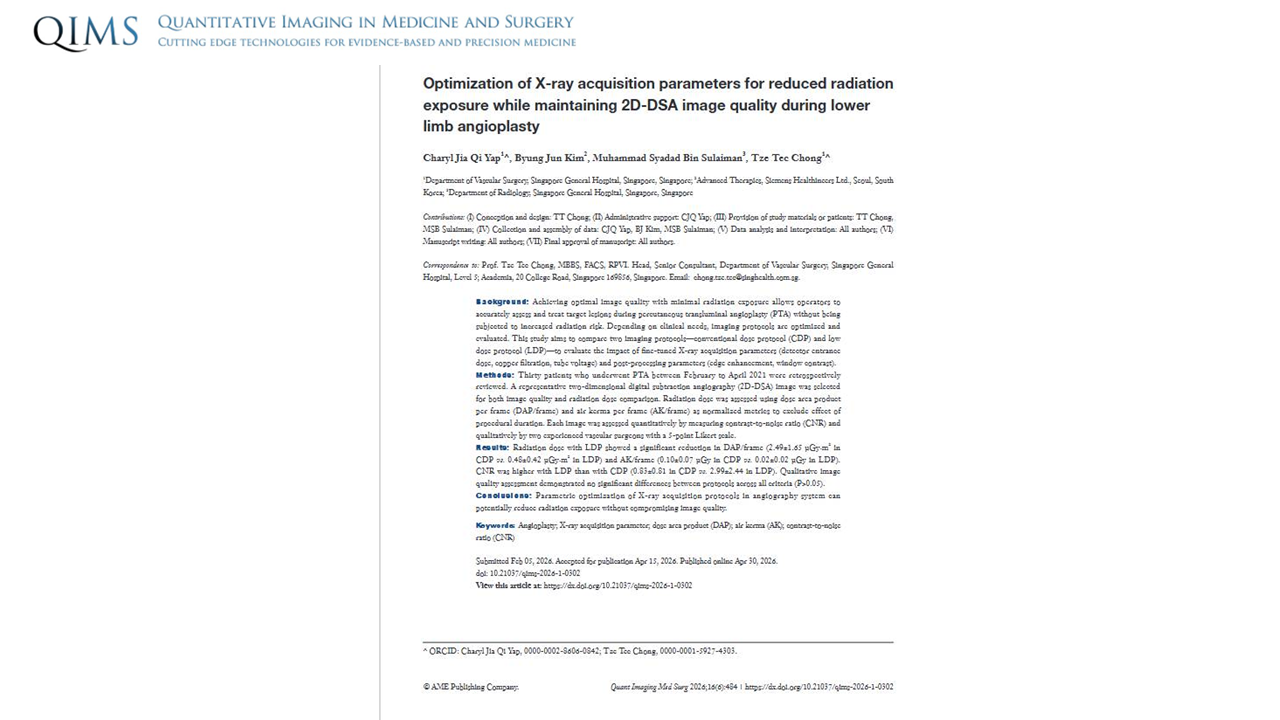

Optimization of X-ray acquisition parameters for reduced radiation exposure while maintaining 2D-DS

Read "Optimization of X-ray acquisition parameters for reduced radiation exposure while maintaining 2D-DS image quality during lower limb angioplasty" to find out what the comparison between conventional and OPTIQ low-dose protocol reveals about radiation exposure and image quality during lower limb angioplasty.

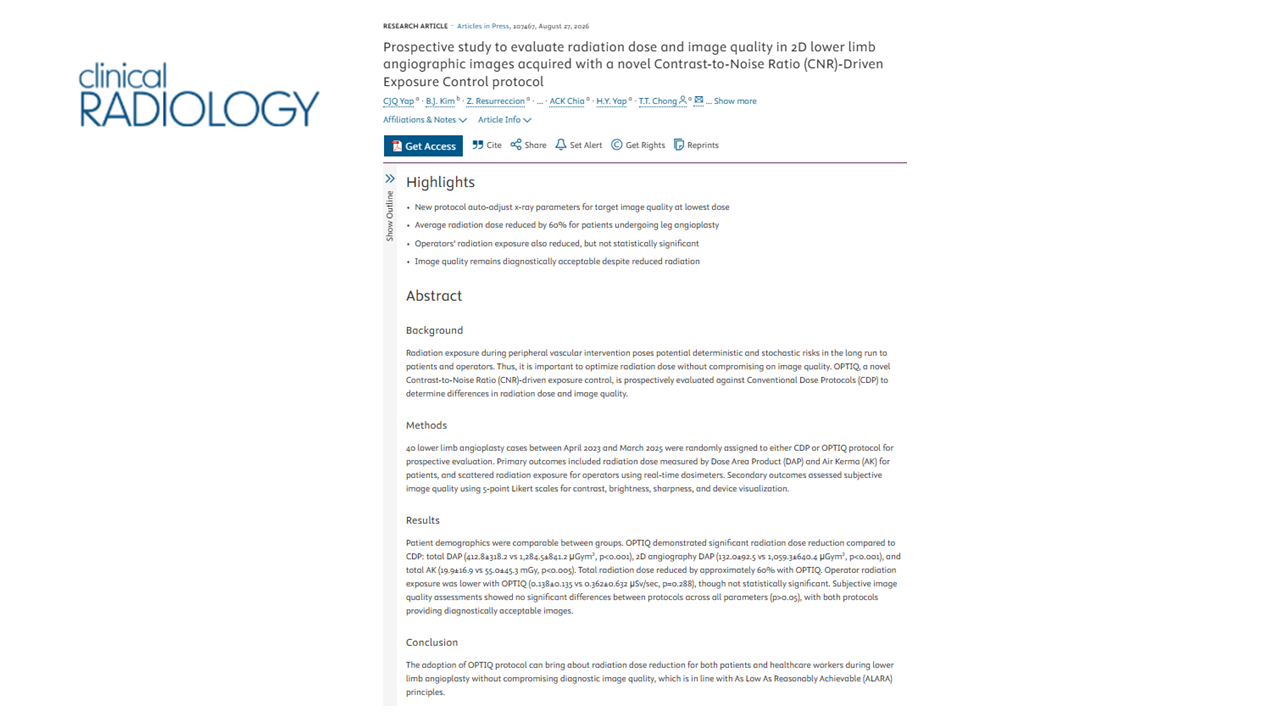

Prospective study to evaluate radiation dose and image quality in 2D lower limb angiographic images

Read "Prospective study to evaluate radiation dose and image quality in 2D lower limb angiographic images acquired with a novel Contrast-to-Noise Ration (CNR)-Driven Exposure Control protocol" to find out how OPTIQ helped to reduce radiation exposure during lower limb angioplasty by approximately 60%.

Siemens Healthineers OPTIQ and Structure Scout Educational Supplement 11-2023

In Interventionalists’ clinical practice, constant image quality and excellent dose efficiency is significant. Several clinicians were eager to share their experiences with OPTIQ and Structure Scout in an educational supplement in Interventional News. Find out what your peers have to say.

Interventional Radiology News

Read "Future-focused IR imaging for a broad procedure mix" to discover how leading clinicians are transforming interventional radiology with Siemens Healthineers technologies. From ultra-fast 3D imaging to laser-guided needle procedures, the ARTIS icono ceiling powered by OPTIQ and syngo DynaCT are redefining what’s possible in IR. Explore real-world cases, expert insights, and the future of image-guided therapy.

Essa informação foi útil?

1

Defined by CNR, within physical limits

2

In 2D images (DSA, fluoroscopy, Overlay Ref, native acquisitions, Roadmap); compared to predicate denoising functionality in VE40.

3

Guidewires, microwires, catheters, microcatheters, stents, flow diverters, vascular plugs, web devices, coils, vessels of the brain, peripheral vessels, vessels of the abdomen, thorax, neck in 2D images (Overlay Ref combined with Extended Overlay Ref, fluoroscopy, native acquisitions, Roadmap, DSA); compared to predicate denoising functionality in VE40.

4

Guidewires, microwires, catheters, microcatheters, stents, flow diverters, vascular plugs, septal occluders, WEB devices, coils, transcatheter valves, coronary vessels, vessels of the brain, peripheral vessels, vessels of the abdomen, thorax, neck in 2D images (DSA, fluoroscopy, Overlay Ref, native acquisitions, Roadmap); compared to predicate denoising functionality in VE40.

5

Within ARTIS systems

6

Compared to predicate denoising functionality in VE40

7

In a phantom setting (The noise reduction was assessed through non-clinical testing using phantom-generated images. The preservation of structure was assessed by comparing to the ground truth using the Structural Similarity Index Measure.)

8

Dose reduction (based on phantom measurements) compared to conventional automatic exposure control - e.g., available with Artis Q, image quality is defined by contrast-to noise ratio

9

ARTIS icono.vision is an edition of ARTIS icono

10

ARTIS pheno.vision is an edition of ARTIS pheno.

The products/features (mentioned herein) are not commercially available in all countries. Their future availability cannot be guaranteed.
