epoc Blood Analysis SystemRight Result. Right Here. Right Now.

Improve outcomes and workflow while transforming care delivery across clinical pathways. The epoc® Blood Analysis System gives you lab-quality results here and now.

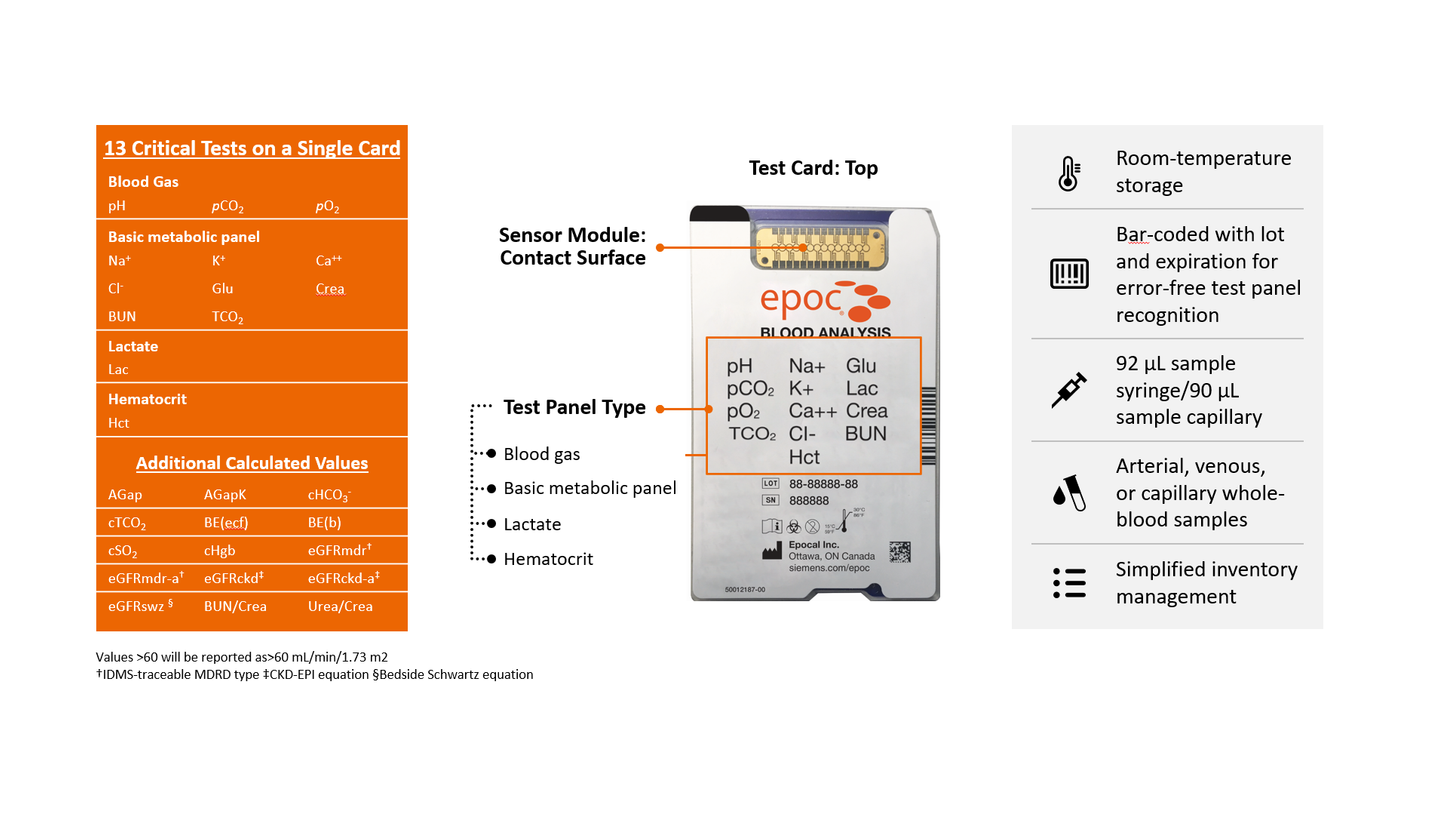

The epoc system is a handheld, wireless solution to enable comprehensive blood analysis testing at the patient’s side on a single room temperature test card, with results in less than a minute.

  • Streamline patient-testing workflow.
  • Accelerate clinical decision making.
  • Simplify inventory management.
  • Deliver real-time results and reporting.
Contact Sales

Features & Benefits


Streamline patient-testing workflow.

By moving testing to the patient’s side, caregivers, patients, and hospital administration all benefit from a less-complex testing process that improves turnaround times, patient care, and operational efficiencies.

Accelerate clinical decision making.

Empower clinicians to make faster decisions with lab-quality results at the patient’s side, enhancing clinical decision making and improving patient outcomes.


Simplify inventory management.

By incorporating a full menu on a single, room temperature-stable test card bar-coded for quality assurance, the epoc system delivers a more efficient and easy-to-manage patient-side testing program.


Deliver real-time results and reporting.

With an integrated, wireless connection, you can easily transmit results from the patient’s side to the EMR/LIS/HIS in real time and gain centralized control of decentralized testing.

Clinical Use

Test results from the epoc® system correlate with leading point-of-care benchtop blood gas and chemistry analyzers.

Technical Specifications

Measured Parameters

Parameter

Unit of Measure

Measurement Range

pH

pH units

6.5–8.0

pCO2

mmHg

5-250

kPa

0.7-33.3

pO2

mmHg

5–750

kPa

0.7–100

TCO2

mmol/L

5-50

mEq/L

Na+

mmol/L

85–180

mEq/L

K+

mmol/L

1.5–12.0

mEq/L

Ca++

mmol/L

0.25–4.00

mg/dL

1.0–16.0

mEq/L

0.5–8.0

Cl-

mmol/L

65–140

mEq/L

Hct

% PCV

10–75

L/L

0.10–0.75

Glu

mmol/L

1.1–38.5

mg/dL

20-700

g/L

0.20-7.00

Lac

mmol/L

0.30–20.00

mg/dL

2.7–180.2

g/L

0.03–1.80

Crea

mg/dL

0.30–15.00

μmol/L

27–1326

Hct

% PCV

10–75

L/L

0.10-0.75

BUN

mg/dL

3-120

Urea

mmol/L

1.1-42.8

mg/dL

7-257

g/L

0.07-2.57

Calculated Parameters

Parameter

Unit of Measure

Measurement Range

cHgb

mmol/L

2.0-15.5

g/dL

3.3-25

g/L

33-250

cHCO3-

mmol/L

1-85

mEq/L

cTCO2

mmol/L

5-50

mEq/L

BE(ecf)

mmol/L

-30 – +30

mEq/L

BE(b)

mmol/L

-30 – +30

mEq/L

cSO2

%

0-100

GFRmdr*

mL/min/1.73m2

2–60 or >60

GFRmdr-a*

mL/min/1.73m2

2–60 or >60

GFRckd

mL/min/1.73m2

1-225

GFRckd-a

mL/min/1.73m2

1-225

GFRswz§

mL/min/1.73m2

1-275

AGap

mmol/L

-14 – +95

mEq/L

AGapK

mmol/L

-10 – +99

mEq/L

BUN/Crea

mg/mg

0.2-400.0

Urea/Crea

mmol/mmol

0.8-1615.4

mg/mg

0.4-856.8

A

mmHg

5-800

kPa

0.67-106.64

A-a

mmHg

1-800

kPa

0.13-106.64

a/A

%

0-100

fraction

0-1
