Multix Fusion Max: A digital X-ray machine with enduring performance

Multix Fusion MaxBuilt to perform in daily radiography

Reimbursements for radiographic examinations are very low. X-ray departments are therefore forced to lower costs and increase productivity. This challenge can impact the quality of patient care and harm a healthcare institution’s reputation.

    With Multix Fusion Max, we offer a unique system concept that combines consistent performance with intelligent cost-reduction solutions and fast, high-quality results. It helps you transform care delivery and provide on-time care to diverse patients.

    Features & Benefits

    Multix Fusion Max
      A smart investment for enduring performance

      Multix Fusion Max makes it easy for you to reduce your total costs and realize a sustainable investment, and it meets your need for enduring high quality – it’s built to last. Its proven high-quality components, from hardware to imaging chain, its many years of successful use worldwide, and an exceptional all-around service concept allow you to rely on high system availability. You can tailor the machine to your needs, thanks to the flexible, modular concept that grows with your changing requirements. Just add the components you need for your clinical routine.

      Consistent performance for high productivity

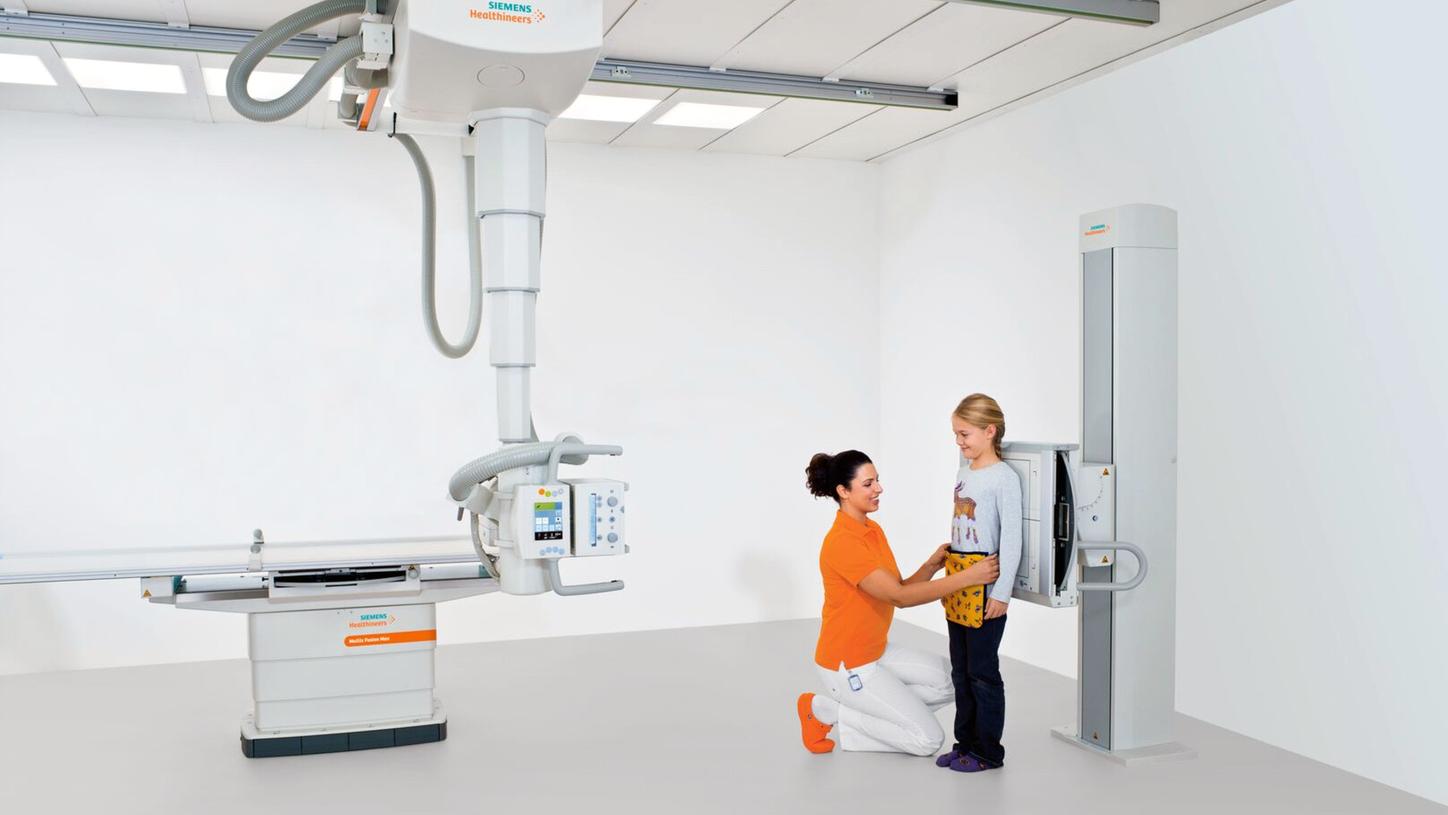

      Multix Fusion Max reduces manual work steps with a high degree of motorization and simplicity. The system enables perfectly synchronized positioning with automated height tracking for table and tube that always maintain the correct source-image distance. You can easily manage a large patient range in a compact space – with the easy-to-position ceiling stand (up to 180 cm of vertical travel range). The tube touchscreen can be used to change settings inside the examination room, which simplifies workflows and increases your time with patients.

      MAX image quality – consistent for all patients and staff

      Every patient is different and requires individual settings. Multix Fusion Max standardizes workflows and outcomes to obtain consistently high image quality for all patients. Our reproducible high MAX image quality is based on a unique image chain. It consists of the MAX detectors and the highly advanced DiamondView MAX postprocessing, which is specifically adapted to every imaging situation.

      The MAX effect

      Look at our high-performance MAX systems. They all share the same usability concept and imaging technology over the broadest range of clinical applications on the market. And if you combine two or more MAX systems, you’ll experience the MAX effect: unique standardization across your fleet, so you can save both time and costs and ultimately boost your level of satisfaction.

      Clinical Use

      Dr. Oliver SommerChief of the Radiology Department, Kardinal Schwarzenberg Klinikum, Schwarzach, Austria2
      Ingrid GanserChief Radiographer, Kardinal Schwarzenberg Klinikum, Schwarzach, Austria2
      Dr. Li FuchunGuangzhou Helping Hand Surgery Hospital, China2

      Technical Specifications

      Multix Fusion Max is a modular system that allows you to add a table, Bucky wall stand, or detector so you can grow with your changing requirements.



      Table height

      51.5 cm to 95.5 cm / total lift 44 cm (tabletop)

      Max. patient weight

      300 kg / 660 lbs

      Max. patient coverage

      Approx. 190 cm without patient repositioning / 75”



      Wireless Detector (MAX wi-D)

      Dimensions (detector area)

      34.8 cm x 42.4 cm / 13.70“ x 16.69“; Can be inserted in the detector tray in landscape and portrait format


      3.3 kg / 6.6 Ibs


      19 mm / 0.74”


      2350 x 2866 pixels

      Pixel size

      148 μm

      Scintillator material

      Cesium Iodide (Csl)

      Max. load capacity

      300 kg / 600 lbs with patient recumbent; 100 kg / 220 lbs with patient standing

      Battery operation time

      Up to 950 images / Up to 5.5 hours during regular utilization / Up to 6 hours in standby mode



      Wireless Detector (MAX mini)

      Dimensions (detector area)

      22.5 cm x 28.4 cm / 8.86” x 11,18”


      1.6 kg / 3.52 Ibs


      16 mm / 0.62”


      1520 x 1920 pixels

      Pixel size

      148 μm

      Scintillator material

      Cesium Iodide (Csl)

      Max. load capacity

      300 kg / 330 lbs with patient recumbent; 100 kg / 220 lbs with patient standing

      Battery operation time

      Up to 950 images / Up to 5.5 hours during regular utilization / Up to 6 hours in standby mode



      Fixed detector (MAX static)


      42.3 cm x 42.5 cm / 16,65” x 16,73”


      2860 x 2874 pixels

      Pixel size

      148 μm

      Scintillator material

      Cesium iodide (Csl)



      Image processing

      DiamondView MAX is a specially developed image processing method (multispatial filtering) that optimizes the image display specifically for different organ regions



      X-ray tube


      Max. exposure voltage

      150 kV (IEC 60613)

      Focal spots

      0.6 mm / 1 mm (IEC 60613)

      Anode heat dissipation rate

      120,000 J/min (170,000 HU/min)

      Anode heat storage capacity

      580,000 J (820,000 HU)

      Anode drive

      150/180Hz (8,500 to 10,800 rpm)





      Output (kW)

      55 kW / 65 kW / 80 kW

      Max. Output (mA)

      640 mA / 1000 mA / 1000 mA



      mAs range

      0.5mAs to 800 mAs

      Exposure times

      0.001 s to 5 s



      System automation



      Automatic Collimation Size Sensing and tracking

      Organ programs

      More than 1,000 organ programs can be stored, customized, and arranged in exam sets


      Measurement of the dose area product (two digits after the decimal)



      Imaging system


      syngo FLC

      specially designed for diagnostic radiology throughout the Siemens Healthineers radiography, fluoroscopy and mobiles portfolio

      Image storage

      10,000 images
